Stainless Steel Pharmaceutical Manifolds

Send Inquiry

Request To Call Back

Stainless Steel Pharmaceutical Manifolds

Name: Stainless Steel Pharmaceutical Manifolds
Brand: SS FABRICATE
Price: 2150.00 INR
Availability: InStock

Price 2150.00 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Stainless Steel Pharmaceutical Manifolds Specification

Usage & Applications
Pharmaceutical Processing, Liquid Transfer, Cleanroom Pipelines

Surface Finish
Mirror Finish

Drive Type
No Drive (Manual Fitting)

Diameter
Custom, Typically 1 to 4 OD

Shape
Rectangular Inlet with Circular Outlet

Noise Level
Silent Operation

Size
Customizable

Features
Corrosion Resistant, Precision Engineered, Leak Proof, Sanitary Design

Capacity
Varies as per Design

Product Type
Machine Parts

Material
Steel

Technology
CNC Machined, TIG Welded

Power Source
Manual / Non-electric

Power
500 Watt (w)

Voltage
240 Volt (v)

Pressure
300 Pa

Surface Treatment
Electropolished, Passivated

Dimension (L*W*H)
Custom as per Specification

Weight
Depends on Size & Configuration

Color
Silver, Metallic Finish

Surface Roughness (RA)
0.4 m

Installation
Horizontal / Vertical Mounting Options

Packing Details
Bubble Wrap / Wooden Box

Standards Compliance
ASME BPE, FDA, EN, DIN

Sealing Mechanism
High-Integrity Gasketed Seals

Working Temperature Range
-40C to +150C

Gasket Material
EPDM / Silicone / PTFE (As per Requirement)

Sterilization Compatibility
Autoclavable, CIP/SIP Suitable

End Connections
Customizable as per Process

Maintenance
Tool-Free Assembly / Disassembly

Leak Integrity
Helium Leak Tested

Connection Type
Tri-Clamp / Flanged / Welded Ends

Stainless Steel Pharmaceutical Manifolds Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
100 Pieces Per Day

Delivery Time
Days

Packaging Details
As per client requirement

Main Export Market(s)
Asia, Australia, Eastern Europe, Middle East, Central America, South America, North America, Africa

Main Domestic Market
Andaman and Nicobar Islands, Karnataka, Madhya Pradesh, Uttarakhand, West India, South India, Tripura, Lakshadweep, Manipur, West Bengal, Andhra Pradesh, Jammu and Kashmir, East India, Chandigarh, Pondicherry, Jharkhand, Odisha, Chhattisgarh, Telangana, Bihar, Nagaland, Assam, Himachal Pradesh, Arunachal Pradesh, Goa, Meghalaya, Haryana, Rajasthan, Tamil Nadu, Uttar Pradesh, Sikkim, Central India, Daman and Diu, Kerala, Delhi, North India, Maharashtra, Dadra and Nagar Haveli, Punjab, Mizoram, All India, , Gujarat

Stainless Steel Pharmaceutical Manifolds About

Stainless Steel Pharmaceutical Manifolds :

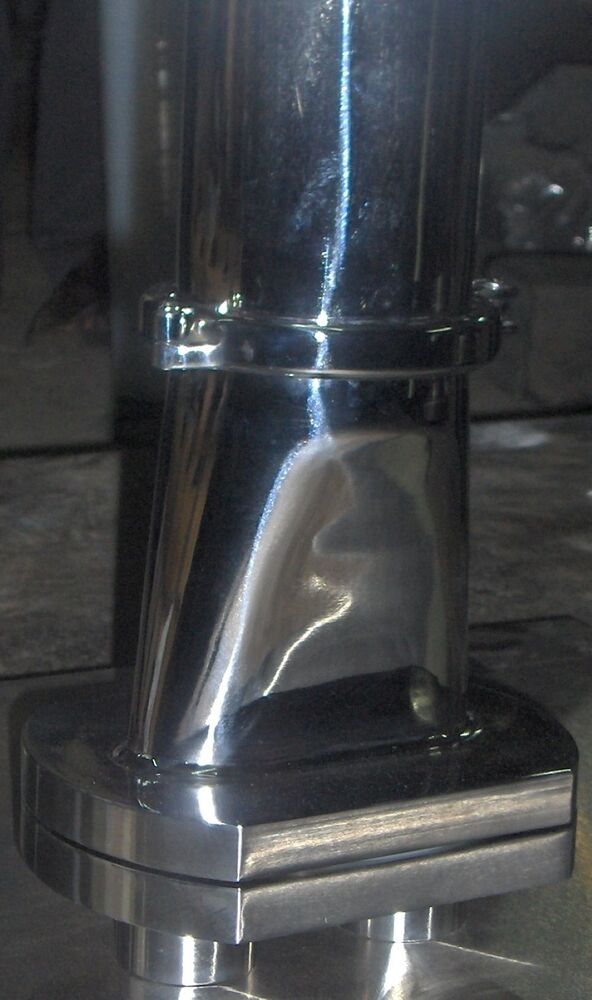

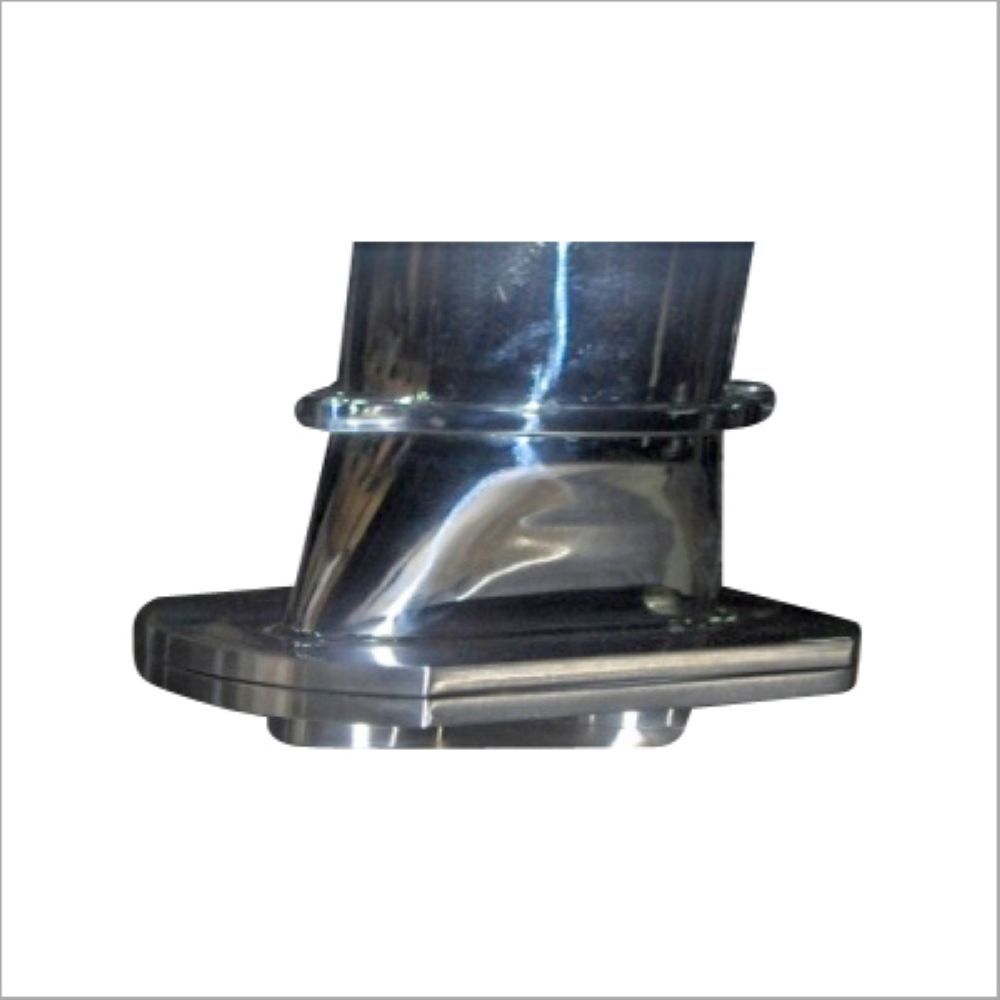

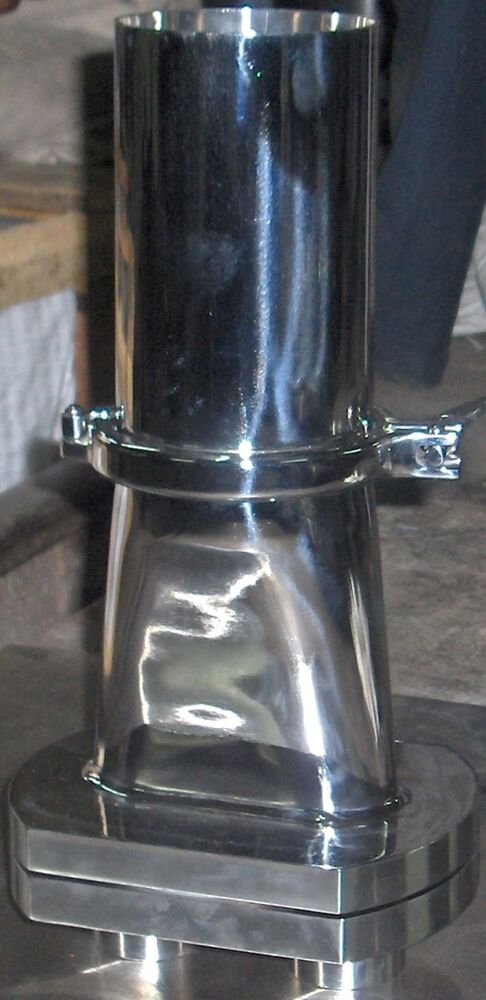

Maniflod is a manually formed product used in pharmaceutical industries to load a material in the machine. Mani fold contain two part. Lower part is narrow oval while upper part is broad round shape. Both upper and lower part is made with 2mm 316 quality stainless steel.

Precision Engineered for Critical Pharmaceutical Applications

Designed for stringent pharmaceutical requirements, these stainless steel manifolds feature CNC machining and TIG welding for ultimate structural precision. The electropolished and passivated surfaces achieve a surface roughness of 0.4 microns (RA), supporting aseptic processes and cleanroom standards. With mirror finishes and customizable dimensions, these manifolds integrate seamlessly into new and existing pipeline systems, ensuring reliable and sanitary operation.

Reliability, Sterilization, and Standards Compliance

Comprehensive leak integrity is verified by helium leak testing. The manifolds are certified to major industry standards, including ASME BPE, FDA, EN, and DIN. They withstand a broad temperature range (-40C to +150C) and enable tool-free assembly or disassembly to minimize downtime during maintenance. Compatibility with autoclave, CIP, and SIP assures easy sterilization and regulatory compliance.

FAQ's of Stainless Steel Pharmaceutical Manifolds:

Q: How are these stainless steel pharmaceutical manifolds installed and where can they be used?

A: These manifolds are designed for versatile installation, allowing either horizontal or vertical mounting to adapt to different pipeline layouts. They are commonly used in pharmaceutical processing lines, liquid transfer applications, and cleanroom pipeline systems where sanitary and contamination-free operation is critical.

Q: What connection types and customization options are available for these manifolds?

A: The manifolds offer Tri-Clamp, Flanged, or Welded Ends, and the end connections can be tailored as per specific process requirements. Both the size and the shape, such as rectangular inlets with circular outlets, are customizable, ensuring compatibility with varied equipment and system designs.

Q: When is tool-free assembly or disassembly beneficial in pharmaceutical setups?

A: Tool-free assembly/disassembly is especially advantageous during routine maintenance, cleaning, or urgent repairs. It enables personnel to quickly access manifold internals without the need for specialized tools, reducing downtime and meeting strict hygienic protocols common in pharmaceutical environments.

Q: What standards and certifications do these manifolds comply with?

A: These stainless steel manifolds meet internationally recognized standards such as ASME BPE, FDA, EN, and DIN. Compliance ensures they are suitable for use in regulated pharmaceutical and biotechnology manufacturing, meeting stringent safety, sterility, and quality requirements.

Q: How do these manifolds ensure leak-proof and sanitary operation?

A: Leak integrity is achieved using high-integrity gasketed seals (EPDM, Silicone, or PTFE as required) and vetted through helium leak testing. The design prioritizes sanitary performance, featuring a 0.4 m RA surface finish, electropolishing, and passivation to prevent microbial growth and facilitate effective cleaning.

Q: What are the benefits of electropolished and passivated surface finishes on these manifolds?

A: Electropolished and passivated surfaces result in a smooth, mirror finish with minimal surface irregularities, greatly reducing the risk of product retention or bacterial contamination. This promotes high-purity fluid handling, supports CIP/SIP protocols, and extends the equipment's operational lifespan.
